Strengthening Your RV Suspension System

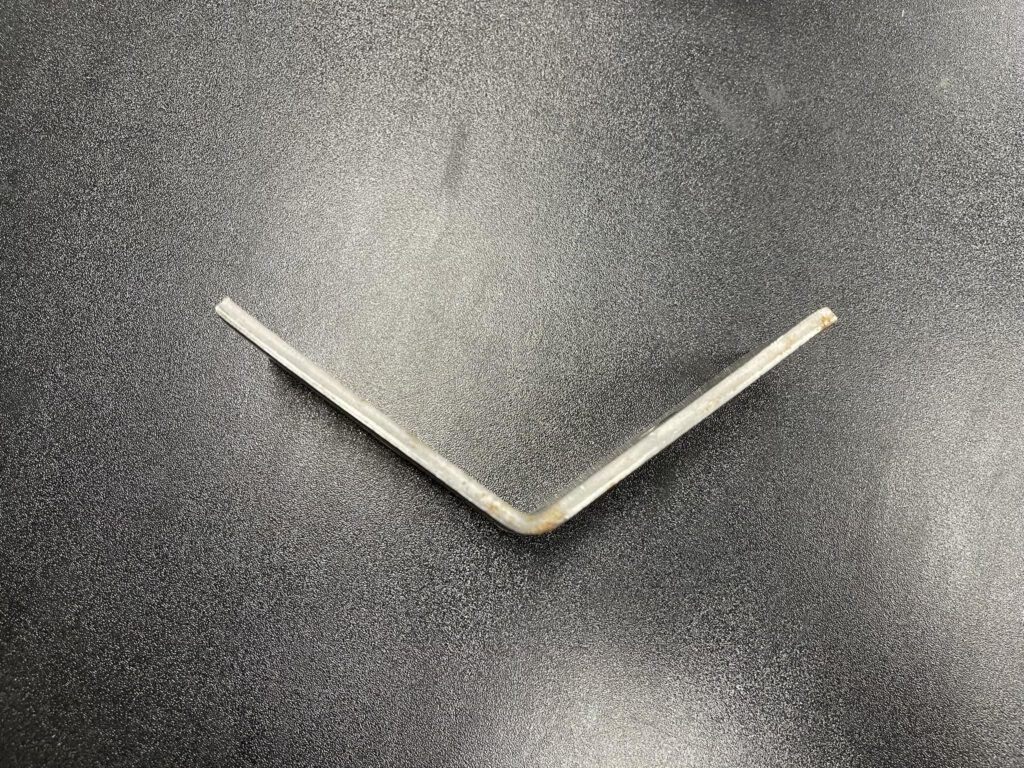

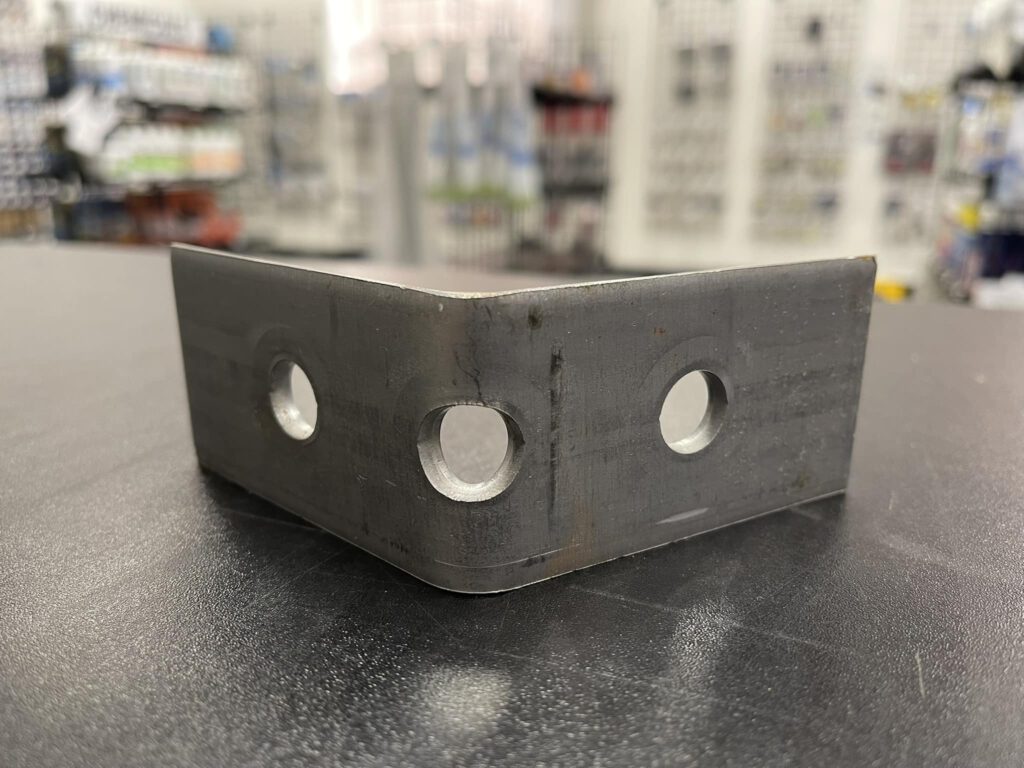

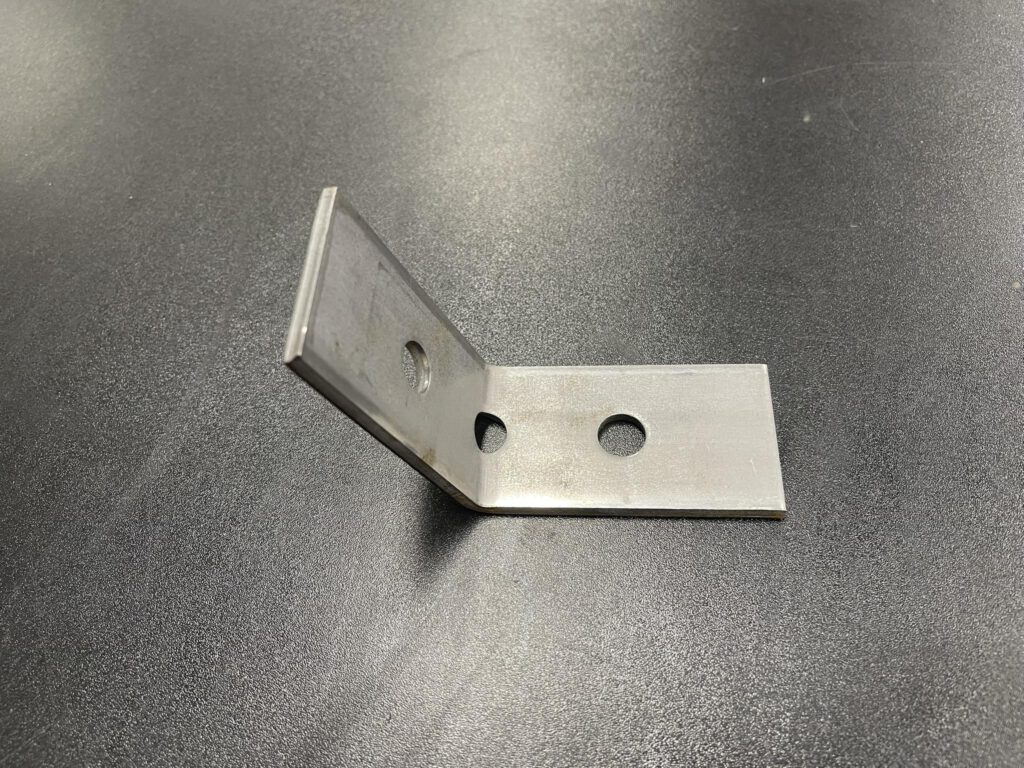

The V support brace is a critical structural component used in heavy-duty axle hanger systems on many fifth wheels and travel trailers. These braces are specifically engineered to strengthen the suspension mounting area and provide additional support where significant stress occurs during towing.
At California RV Specialists, we frequently inspect RV frames and suspension systems and have seen how important proper reinforcement can be in preventing suspension damage and frame fatigue.
Why Axle Hangers Are So Important
Axle hangers serve as the mounting points that connect the trailer’s suspension system to the RV frame. These components support and align the axle assembly while absorbing the stresses created during travel.
Because these areas experience constant movement and heavy loads, they are often exposed to:
• Road vibration
• Suspension flex
• Heavy weight loads
• Uneven terrain
• Braking and acceleration forces
Over time, these stresses can lead to hanger movement, cracked welds, or frame damage if the suspension mounting area is not properly reinforced.
The Role of the V Support Brace

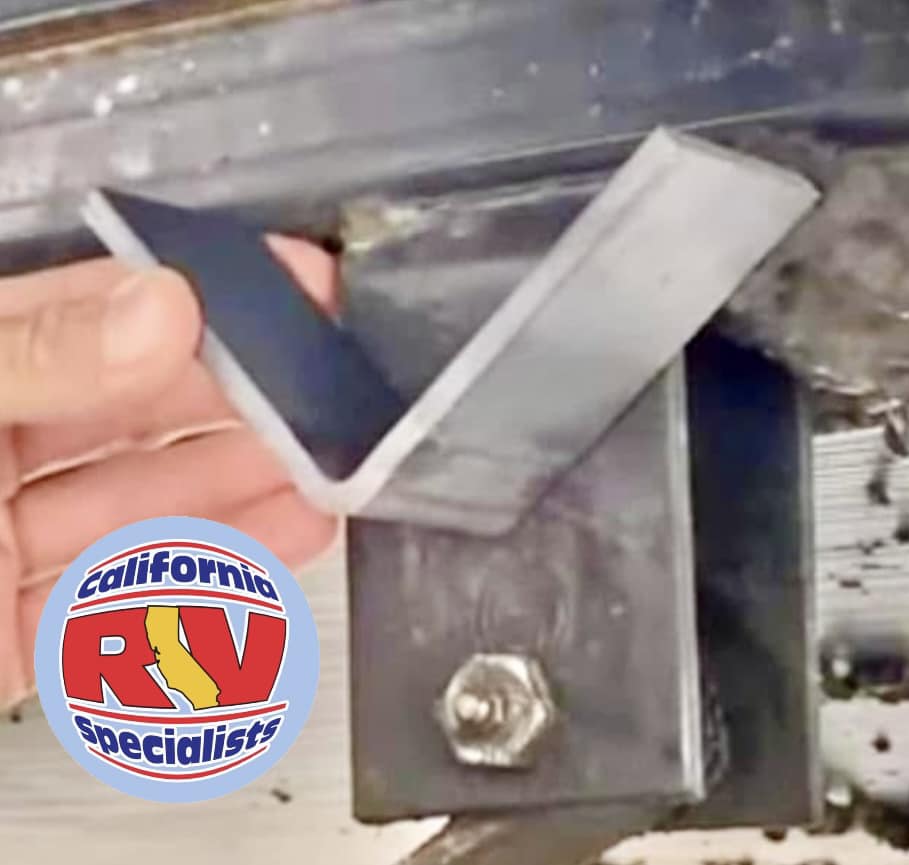

The V support brace is designed to strengthen the hanger assembly by adding structural rigidity between key mounting points.
This reinforcement helps:
• Increase the strength of the suspension mounting system
• Reduce frame flex near axle hangers
• Improve overall trailer stability
• Prevent weld fatigue and hanger movement
• Extend the life of the suspension components

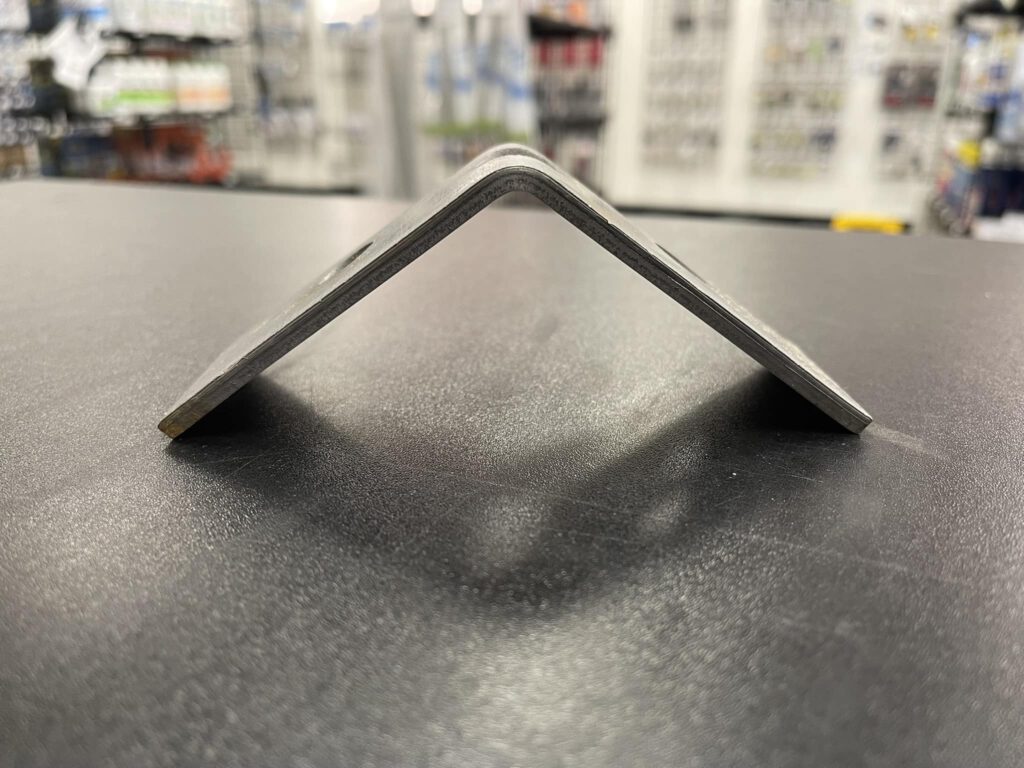

The triangular design of the brace distributes forces more evenly across the suspension system, allowing the frame to better handle the demands of towing heavy loads.

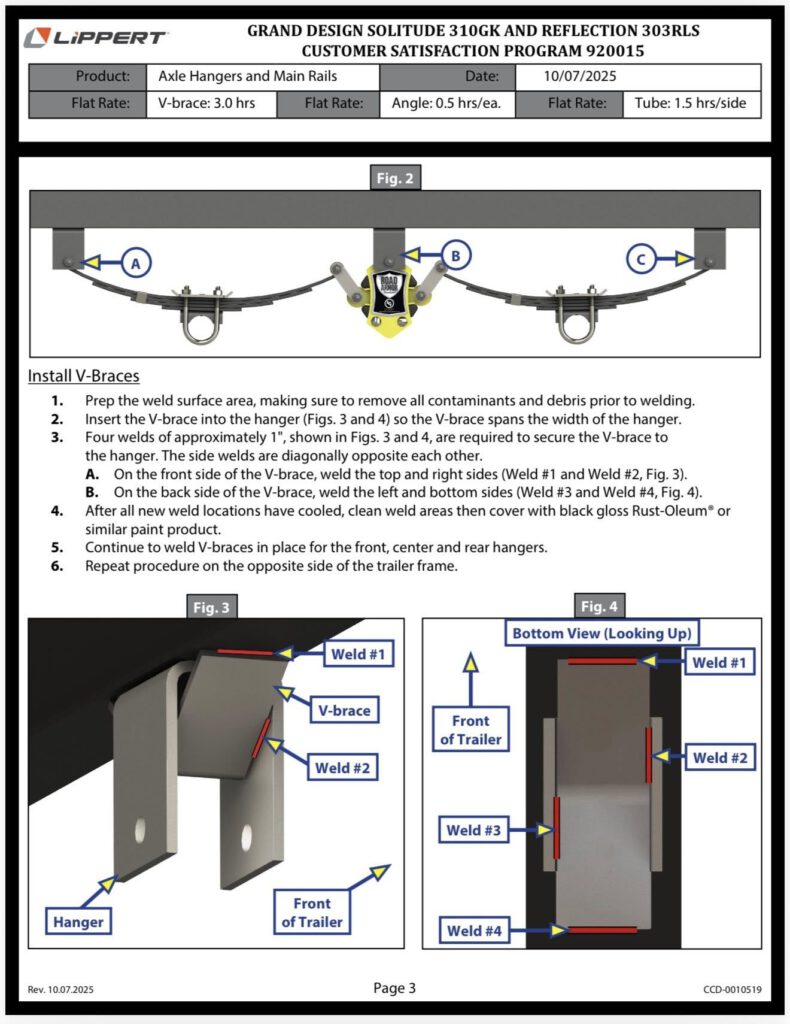

Proper Welding Installation
Correct installation of the V support brace is essential to ensure maximum strength and reliability.
The installation process involves strategic welding on both sides of the brace:

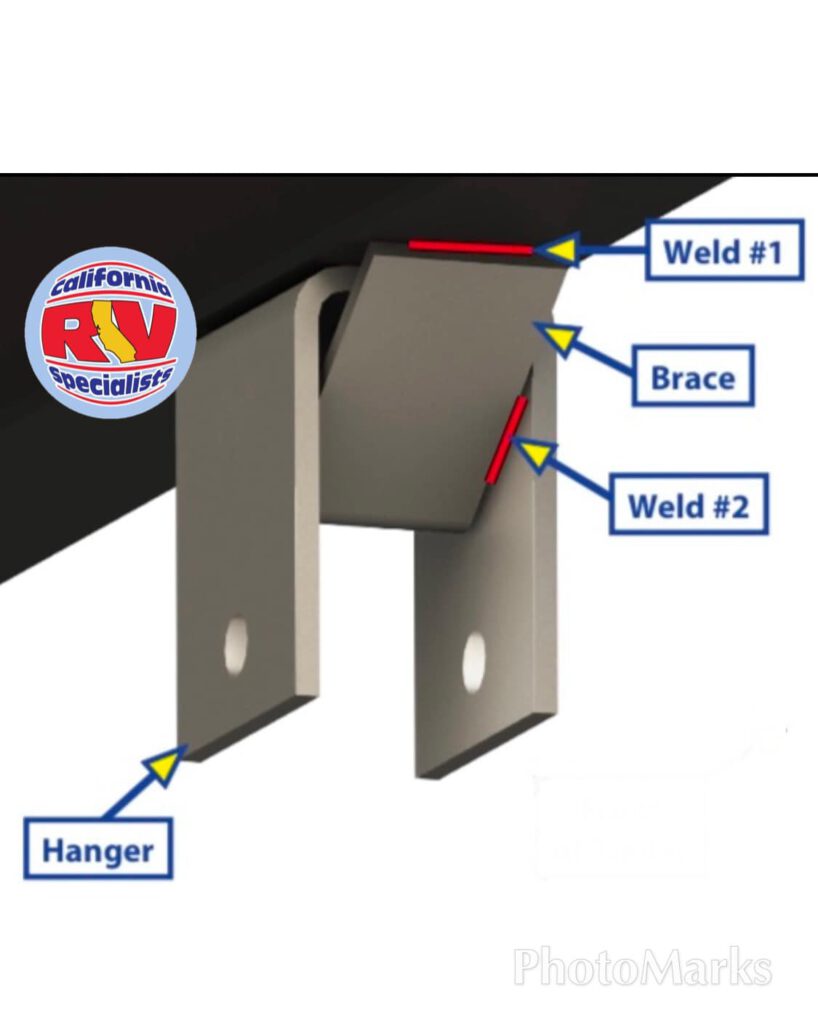

Front Side Welds
Two weld points are applied to secure the brace:
• Weld #1 – Top side of the brace
• Weld #2 – Right side of the brace
These welds anchor the brace to the axle hanger and reinforce the primary load-bearing areas.

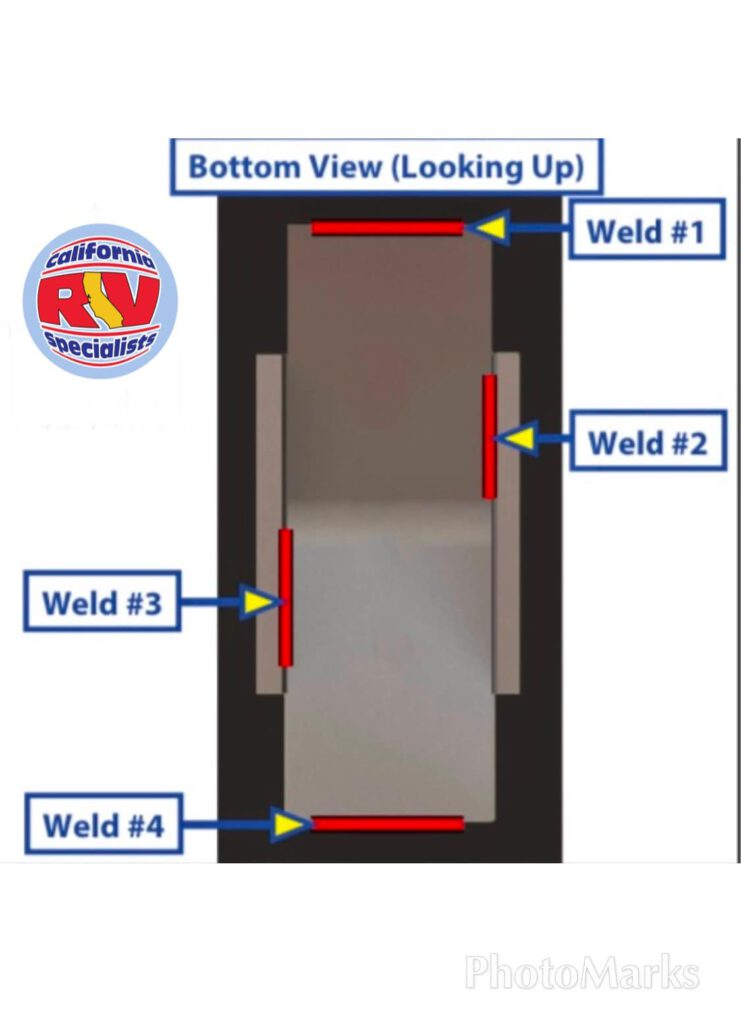

Back Side Welds
Two additional welds are installed on the reverse side:
• Weld #3 – Left side of the brace
• Weld #4 – Bottom side of the brace
This dual-sided welding approach creates a strong and balanced connection that can withstand the stresses generated during normal trailer operation.
When installed properly, the V support brace significantly improves the structural integrity of the suspension system.
RV Frame and Suspension Inspections
During our wheel bearing, brake, suspension, and frame inspections, our technicians regularly evaluate axle hangers and frame components for signs of stress or damage.
Common issues we often identify include:
• Cracked hanger welds
• Frame flex near suspension mounts
• Bent or weakened hangers
• Suspension alignment concerns
Early detection allows RV owners to address these issues before they turn into costly frame repairs.
Protect Your RV Investment
Adding reinforcement such as V support braces can help protect your RV from structural damage and maintain safe suspension operation.
If you are unsure about the condition of your suspension hangers or frame, we recommend scheduling an inspection to determine whether reinforcement may be beneficial for your RV.
Schedule an RV Frame or Suspension Inspection
California RV Specialists provides professional frame and suspension repair services for towable RVs including:
• Fifth wheels
• Travel trailers
• Toy haulers
Our technicians specialize in diagnosing and repairing structural RV issues and installing reinforcement components designed to improve durability and safety.
