A Small Part That Can Lead to Major Suspension Damage
A worn leaf spring hanger bushing on a fifth wheel is not a minor issue. What starts as a small amount of wear can quickly turn into a serious suspension problem—and even a safety hazard—if left unaddressed.
At California RV Specialists, we frequently see suspension damage that began with something as simple as a failed bushing.
What Does a Leaf Spring Hanger Bushing Do?
The bushing sits between the spring eye (or equalizer) and the shackle bolt. Its job is to:
• Keep suspension components properly aligned
• Prevent metal-on-metal contact
• Allow smooth pivoting movement
• Absorb normal suspension travel
Many RVs come equipped with factory-installed nylon bushings, which tend to wear out faster than upgraded components.
What Happens When the Bushing Wears Out?
When a bushing fails, it creates excessive movement between the bolt and the spring. Instead of a smooth pivot point, components begin to shift and grind against each other.
Early Failure Signs
• Excess movement between the shackle bolt and spring eye
• Squeaking noises from the suspension
• Light clunking when starting or stopping
At this stage, the issue is still manageable—but it should not be ignored.
How Damage Progresses
Once the bushing is gone, the damage accelerates quickly.
• Holes in the spring eye or hanger begin to stretch and become egg-shaped
• Metal components grind directly against each other
• Shackle bolts begin to groove, thin out, and weaken
• In severe cases, bolts can shear or fail completely
What starts as a small wear item can turn into a major repair.
Damage Caused by Worn Bushings
Suspension Damage
• Elongated spring eyes requiring full leaf spring replacement
• Worn or damaged hangers that may require cutting and welding
• Damaged equalizers
Axle Alignment Issues
When suspension components wear unevenly, axle alignment can shift. This leads to:
• Poor tracking while towing
• Increased stress on suspension components
Tire Damage
One of the most common and costly results:
• Uneven tire wear
• Overheating tires
• Premature tire failure or blowouts
Additional Stress on the RV Frame
Improper load distribution puts added stress on:
• Frame components
• Suspension mounting points
• Running gear
Safety Risks You Shouldn’t Ignore
As wear progresses, the risk level increases significantly.
• Increased instability while towing
• Loud clunking or shifting noises
• Uneven tire wear becomes more noticeable
In severe cases:
• Suspension components can partially fail
• A broken bolt can allow the axle to shift suddenly
• Increased risk of tire blowouts or loss of control
This is not just a maintenance issue—it’s a safety concern.
Common Signs to Watch For
If you notice any of the following, your suspension should be inspected:
• Clunking when starting or stopping
• Squeaking noises from underneath the RV
• Trailer feels loose or unstable behind the truck
• Uneven or rapid tire wear
What We Typically Find in the Shop
At California RV Specialists, we often find that by the time a customer notices symptoms, the bushing is already completely worn out.
In many cases, repairs involve more than just replacing bushings:
• Worn shackle bolts
• Damaged shackles
• Elongated spring eyes
• Worn or damaged hangers
This is why early inspection is so important.

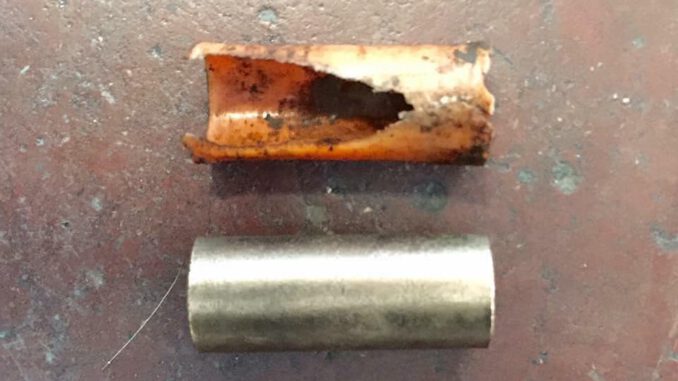

Upgrading for Long-Term Reliability
To prevent repeat failures, we commonly recommend upgrading to:
• Bronze bushings
• Wet bolts (greasable bolts)
• Heavy-duty shackles
These components are far more durable than factory nylon bushings and significantly extend the life of your suspension system.
Protect Your RV Before Your Next Trip
A worn hanger bushing may start small, but it can quickly lead to major repairs and dangerous conditions on the road.
Catching the problem early can:
• Prevent expensive suspension damage
• Extend the life of your RV components
• Improve towing safety and stability
Schedule an RV Suspension Inspection
If you’re unsure about the condition of your suspension system, it’s worth having it checked before your next trip.
California RV Specialists offers professional suspension inspections and repairs to help keep your RV safe and road-ready.
