RV Frame Crack Inspection & Repair in Lodi, California
Frame cracks around the axle, suspension hanger and I-beam areas of a travel trailer or fifth wheel should never be ignored. These areas carry significant loads and are continually subjected to movement and forces as an RV travels down the road.
At California RV Specialists LLC in Lodi, California, our team inspects and repairs RV frame and suspension-related structural damage, including cracks found near the axle and suspension mounting locations.
RV Frame integrity
A RV Frame crack may start small.
Continuing to travel without properly evaluating the damage can allow the crack to progress.
It may also place additional stress on surrounding components.
If you have discovered a crack underneath your RV—or something simply doesn’t look right around the suspension—our team can inspect the area, document what we find and determine what repairs may be appropriate.
Where Do RV Frame Cracks Commonly Develop?
On travel trailers and fifth wheels, the suspension system transfers loads from the axles into the RV frame through the suspension attachment points.
Depending on the RV’s construction and suspension design, cracks or structural concerns may be discovered around areas such as:
- Suspension hangers
- Hanger welds
- I-beam flanges
- I-beam web areas
- Axle and suspension mounting locations
- Equalizer hanger locations
- Spring hanger attachment points
- Crossmembers
- Frame reinforcement areas
- Previously repaired or welded areas
Every crack is different.
The location, direction, length and surrounding frame condition should be evaluated before determining how the repair should be performed.
What Can Cause an RV Frame to Crack Near the Axles?
There isn’t necessarily one single cause of an RV frame crack.
An RV suspension is continually transferring forces from the roadway into the frame. Over thousands of miles, the trailer may encounter potholes, uneven highways, railroad crossings, bridge transitions, driveway entrances and other road conditions.
Possible contributing factors can include:
Road Impacts
A severe pothole, curb strike or other road impact can transfer significant force through the tire, wheel, axle, leaf spring and suspension hanger into the frame.
Normal Frame & Suspension Movement
Travel trailers and fifth wheels are not completely rigid structures. Some movement occurs while traveling, and repeated loading and unloading of structural areas can contribute to fatigue over time.
Suspension Problems
Broken or damaged leaf springs, worn bushings, damaged equalizers, loose U-bolts, bent suspension components or other problems can change how loads are being transferred into the frame.
Overloading or Uneven Loading
Operating an RV beyond applicable weight ratings or with improper loading can increase stress on the trailer, tires, axles, suspension and frame.
Damaged or Improper Welds
In some cases, cracking may originate around a weld or attachment point. Determining what has actually failed is important before attempting a repair.
Previous Damage or Repairs
A previously damaged or repaired frame area may require additional evaluation if cracking or movement appears again.
Signs of Possible RV Frame or Suspension Damage
Not every frame problem is immediately obvious.
Sometimes a crack is discovered during routine maintenance. Other times, changes in the RV may provide clues that something underneath needs to be inspected.
Watch for conditions such as:
- Visible frame cracks
- Cracks around suspension hangers
- Cracked or separated welds
- Bent suspension hangers
- Distorted frame material
- Broken leaf springs
- Suspension components sitting at unusual angles
- Trailer leaning to one side
- Abnormal or rapid tire wear
- Tires rubbing against surrounding components
- Changes in axle position
- Trailer tracking differently behind the tow vehicle
- Unusual suspension noises
- Loose or shifted suspension components
- Evidence that components have moved from their original positions
If something suddenly looks, sounds or feels different after a hard road impact, having the RV inspected before continuing extensive travel may help identify damage before it becomes worse.
Don’t Inspect Only the Visible Crack
One of the most important parts of an RV frame crack repair is determining what else may have been affected.
If a crack is discovered near a suspension hanger, simply focusing on the visible crack may overlook other conditions nearby.
Depending on the circumstances, our inspection may include areas such as the:
Frame • I-Beams • Suspension Hangers • Welds • Crossmembers • Leaf Springs • Equalizers • Shackles • Bushings • Wet Bolts • U-Bolts • Spring Plates • Axles • Wheels • Tires
We may also inspect the opposite side of the RV and other suspension mounting locations.
If one area has experienced enough stress to develop a crack, it can be worthwhile to examine similar attachment points elsewhere on the frame.
Why Simply Welding Over a Crack May Not Be Enough
Seeing a crack and immediately running a weld over it isn’t necessarily the appropriate repair.
Before repairing structural damage, important questions include:
Where does the crack start and end?
What material has cracked?
Is the surrounding material distorted or damaged?
Is there damage to the suspension hanger or weld?
Are other cracks present nearby?
Did a suspension component contribute to the damage?
Does the repair require reinforcement in addition to welding?
Are there manufacturer-specific repair procedures that should be followed?
The objective should be to understand the condition and perform the appropriate repair—not simply make the visible crack disappear.

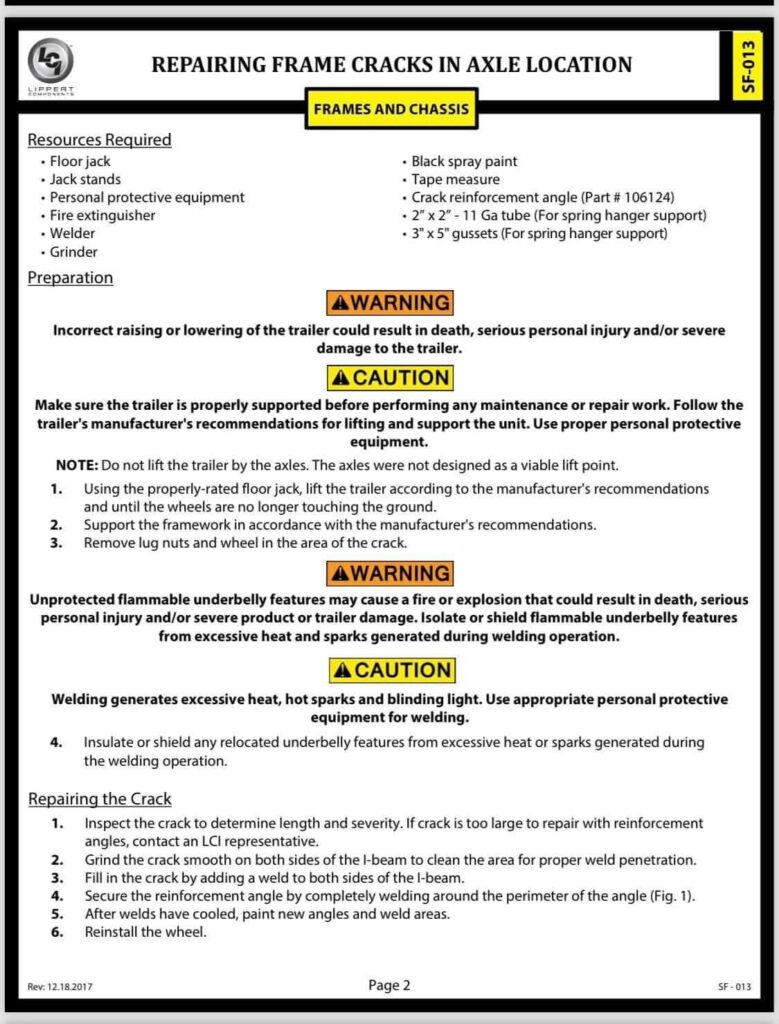

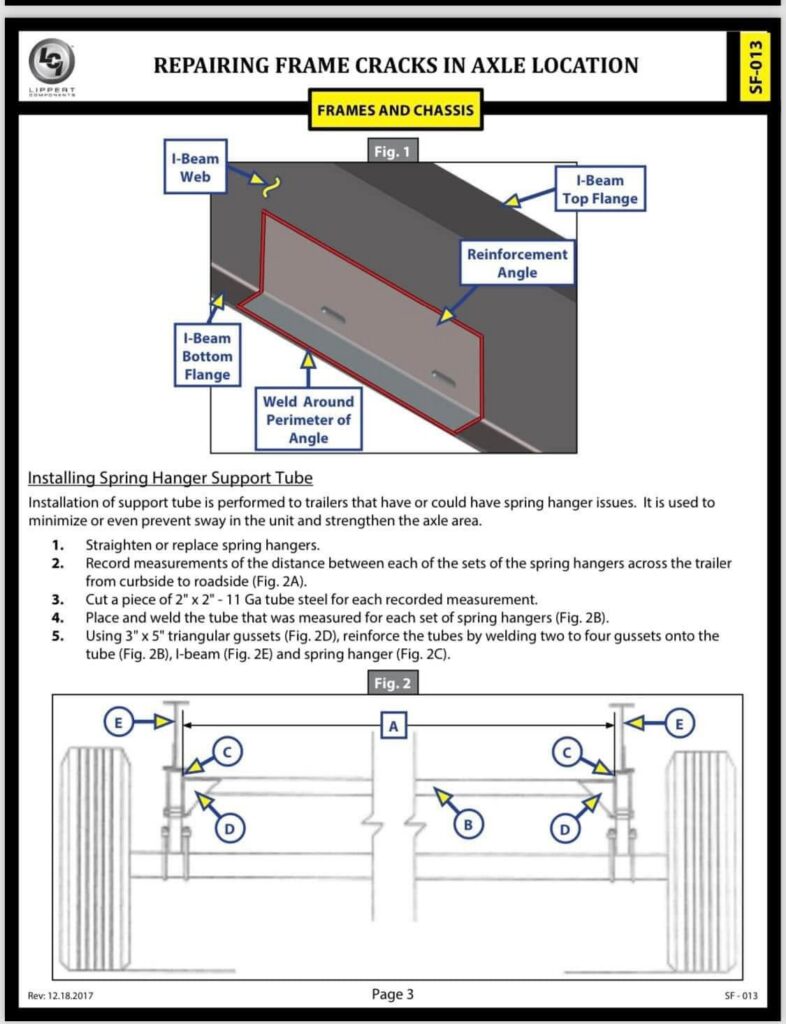

RV Frame Crack Welding & Reinforcement
The appropriate repair depends on what is discovered during the inspection.
A frame repair may involve a combination of:
- Preparing the damaged area
- Removing damaged material when appropriate
- Welding the affected area
- Repairing damaged suspension hangers
- Replacing damaged suspension components
- Fabricating reinforcement components
- Installing reinforcement plates when appropriate
- Repairing surrounding structural components
- Inspecting related welds and attachment points
- Reassembling and inspecting the suspension system
There is no universal repair that should automatically be applied to every RV frame crack.
The repair needs to match the specific location, frame construction, extent of damage and applicable repair requirements.
Manufacturer-Authorized RV Frame Repairs
When an RV is still under warranty or the manufacturer is participating in the repair, California RV Specialists can work with applicable manufacturers when authorization has been provided.
Depending on the situation, this may involve:
- Photographs of the damaged areas
- Measurements
- Inspection findings
- Manufacturer communication
- Repair procedures supplied by the manufacturer
- Repair authorization
- Additional documentation during disassembly
- Photographs of the completed repair
When a manufacturer provides a specific repair procedure, the repair should be performed according to the applicable instructions and authorization.
Suspension Damage Can Be Related to Frame Damage
A frame crack near the axle area shouldn’t necessarily be viewed independently from the suspension.
The suspension is responsible for transferring loads between the road, axles and frame.
That’s why we may also inspect components such as:
Leaf Springs
Look for broken leaves, flattening, unusual positioning, damaged spring eyes and other visible deterioration.
Shackles & Bushings
Worn bushings and shackles can create excessive movement in suspension attachment points.
Equalizers
Inspect for wear, damage, unusual movement and deteriorated bushings.
U-Bolts & Spring Plates
Loose, damaged or shifted components can affect axle and suspension positioning.
Suspension Hangers
Inspect the hanger itself as well as the welds and surrounding frame material.
Axles
Road impacts or suspension failures may also affect axle condition and positioning.
Don’t Forget the Tires
Your tires can sometimes provide valuable clues about what’s happening underneath the RV.
Abnormal wear may be associated with a variety of conditions, including:
- Tire pressure
- Loading
- Axle condition
- Suspension wear
- Alignment-related conditions
- Damaged suspension components
- Other running-gear problems
A tire wearing rapidly on one edge shouldn’t automatically be diagnosed as a frame problem, but it is a reason to investigate the trailer’s running gear.
Frame Inspections Should Be Part of RV Maintenance
RV owners spend a lot of time talking about roof maintenance—and for good reason—but the underside of the RV deserves attention too.
During routine maintenance, owners should periodically look at accessible areas around the:
Frame • Suspension Hangers • Leaf Springs • Shackles • Equalizers • U-Bolts • Axles • Brakes • Wheels • Tires
Look for something that has changed since the previous inspection.
Fresh rust around a weld, unusual movement, a bent component or a visible crack deserves additional investigation.
Have You Found a Crack Near Your RV Axles?
If you’ve discovered a frame crack, I-beam crack, cracked suspension hanger, damaged weld or other structural concern near the axle area, avoid assuming that it is only a cosmetic issue.
California RV Specialists can inspect the RV, document the condition and determine what repairs may be appropriate.
We work on travel trailers, fifth wheels and toy haulers and regularly encounter suspension, axle, frame and structural concerns in the repair shop.
